Sourcekit® PiTray clip

Designer: Weihong Guan , Guangcheng Zhan, Lichao Chen

Description

Sourcekit® PiTray clip is a Din Rail mounter for Single Board Computers like Raspberry Pi. Assembled of a 304 Stainless Steel blended plate and nylon clip with spring, it provides a simple, quick, strong and durable Din Rail installation solution suitable for industrial setup, home automation application as well as cluster building.

Features

• Compatible with IEC/EN 60715 Din Rails

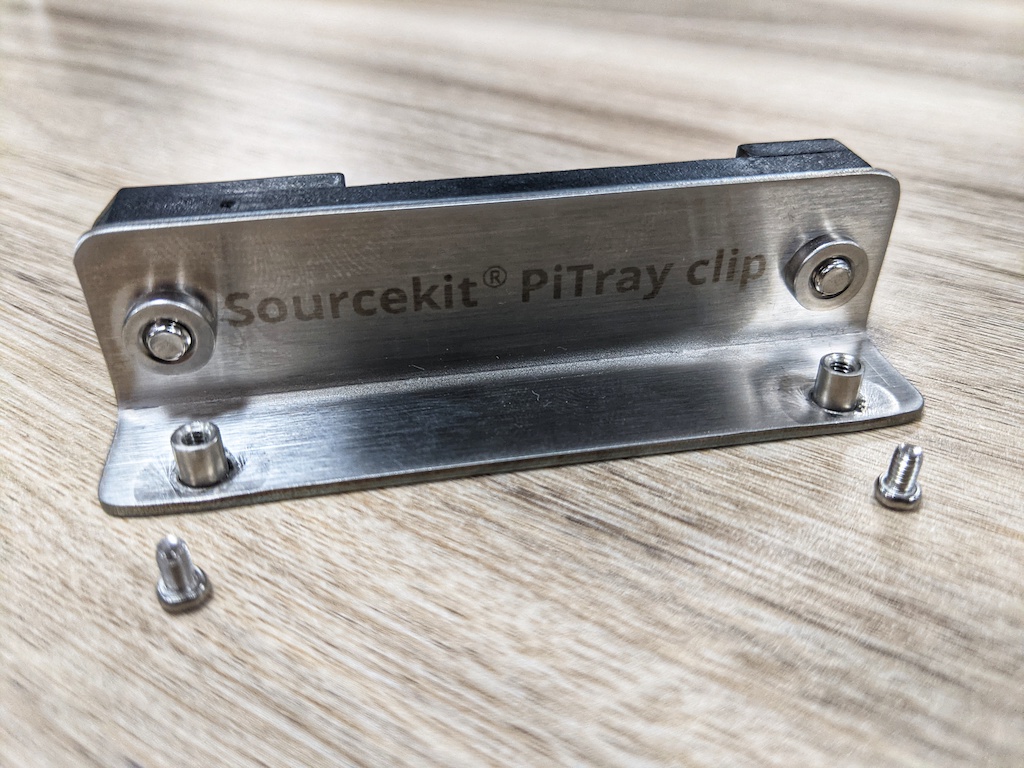

• 304 Stainless Steel PCB Rack with thickness of 1.5 mm
• Nylon (PA66 30GF) Clip with Spring, easy to mount and unmount

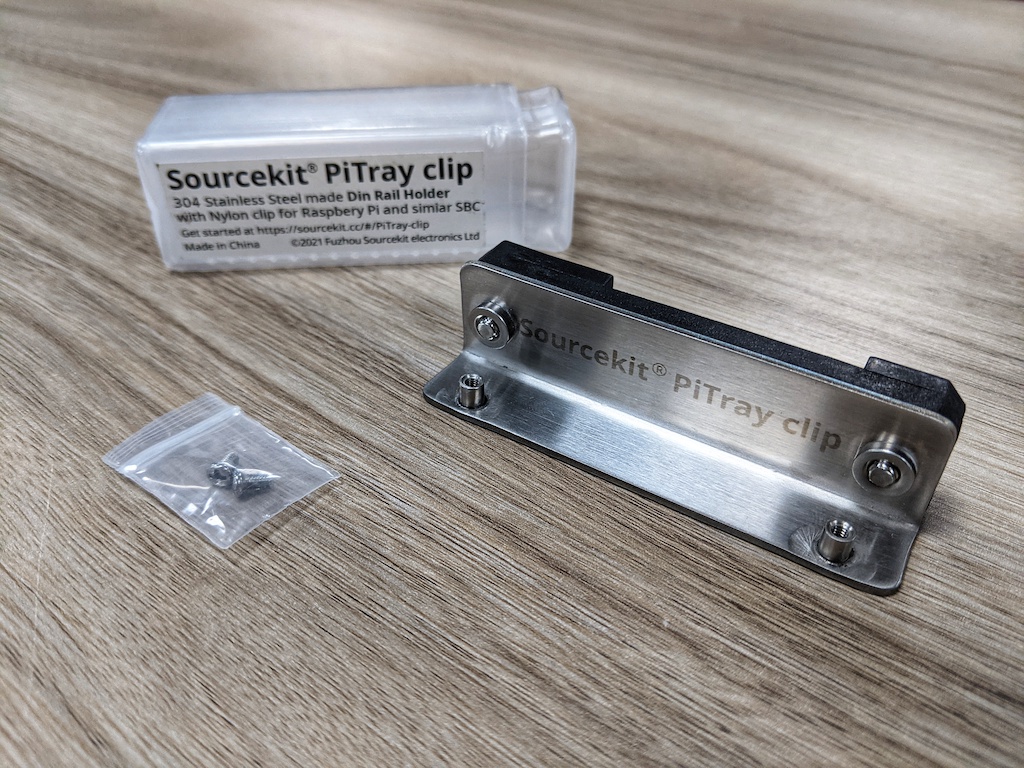

• Include 2 pcs of 304 Stainless Steel M2.5x4 blots to fasten PCB
• Brushed Polished Finish and free of rough edges
• Work for

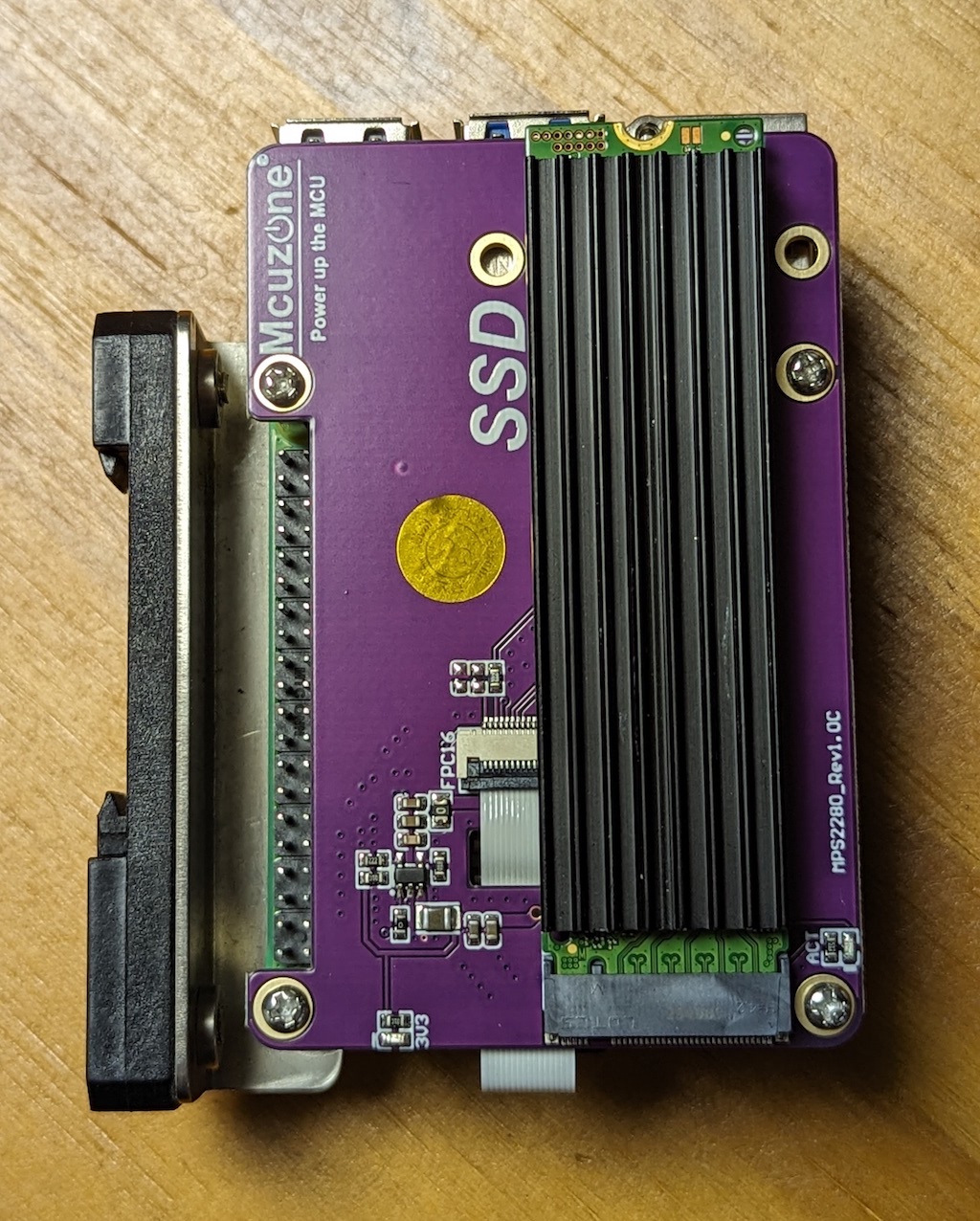

  • Raspberry Pi 5, 4B/3A+/3B+/3B/2B/1B+/1A+/Zero W/Zero
  • Nvidia Jetson Nano / Xavier NX
  • PINE64 Rock64/PINE H64 Model B
  • Hardkernel ODROID C4
  • ASUS Tinker Board 2S/2/Edge T/S/Edge R/1

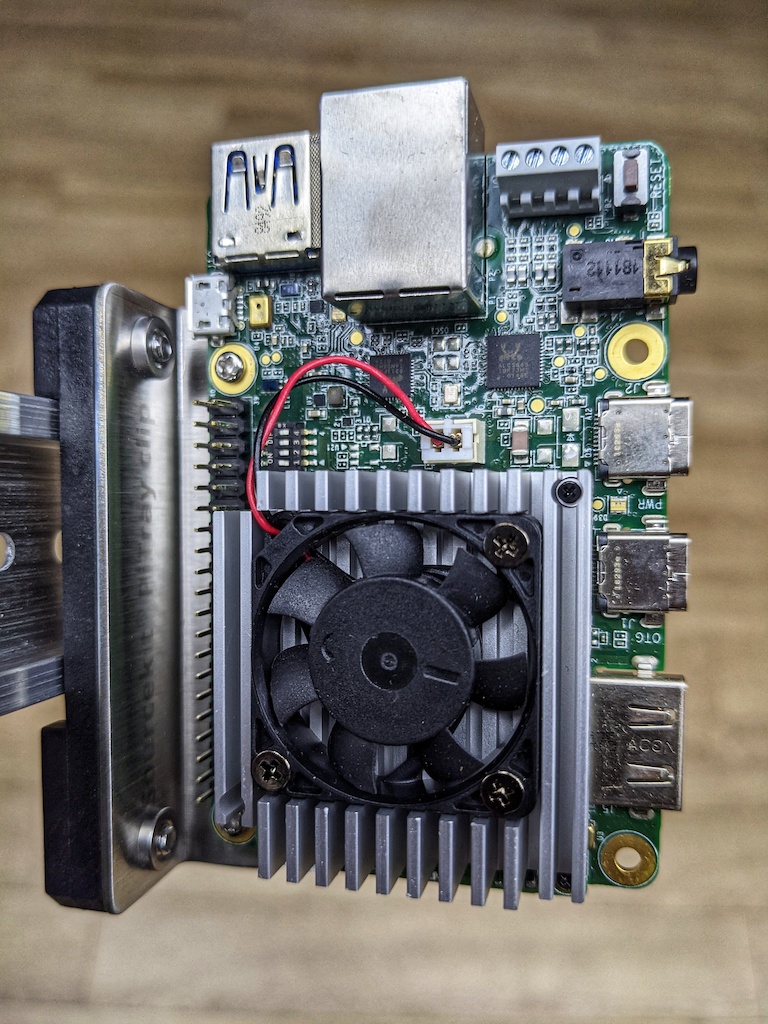

  • Coral Dev Board / Dev Board Mini
  • Sourcekit PiTray mini
  • Intel UP 4000

Discussion and Showcase

• DIN Rails make Pi mounting easy! - Jeff Geering

• Forum (Powered by GitHub Discussion)
• CadQuery model for PiTray Clip - Seth Fischer

Instructions

1. Mount PCB on PiTray clip with the 2 screws attached

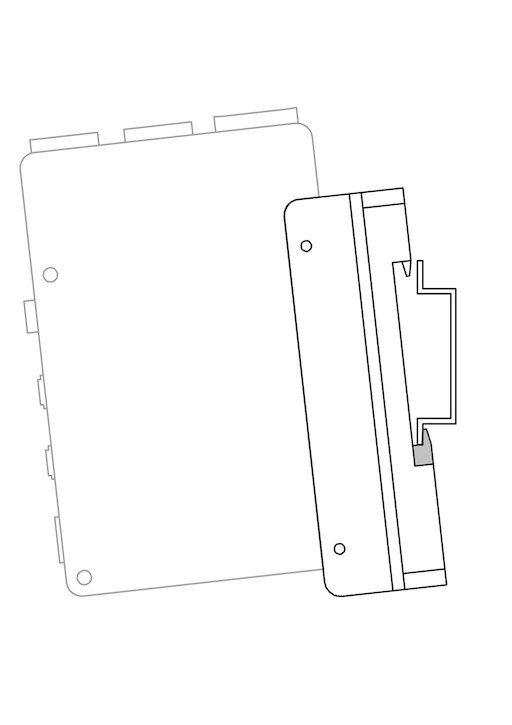

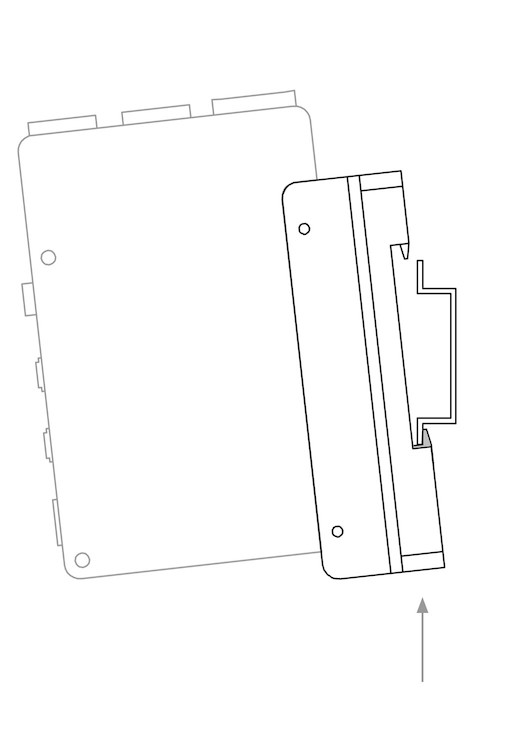

2. Mount the lower jaw to the Din rail

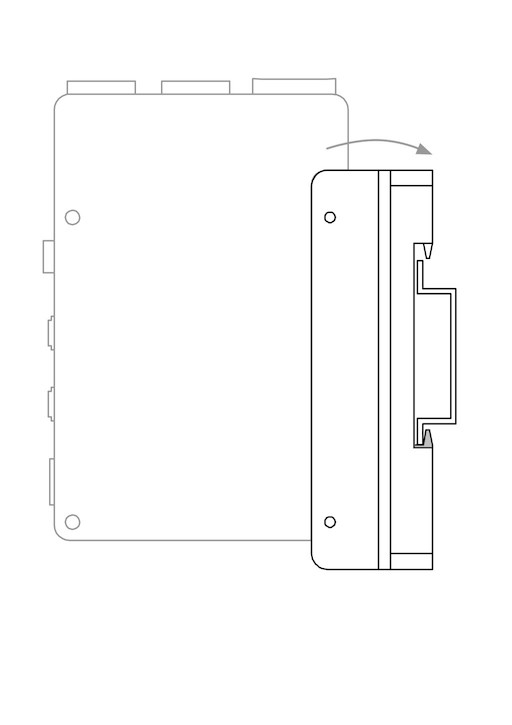

3. Push up to compress the clip spring to make room for the upper jaw

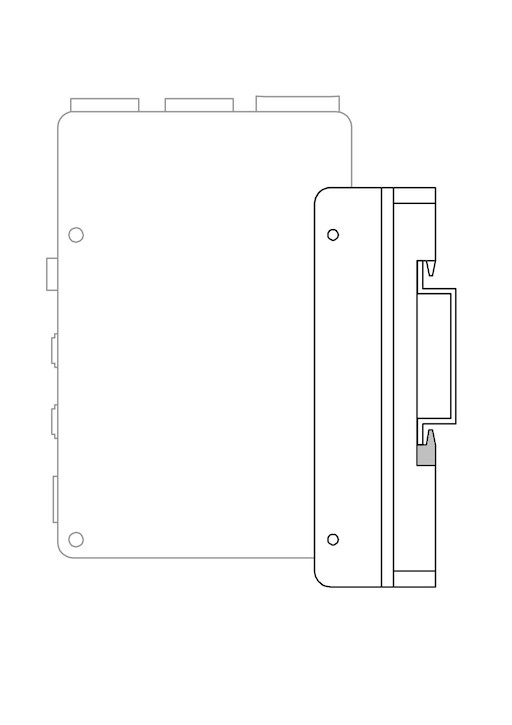

4. While hoding the up force, let the upper jaw mount the Din rail

5. Release the clip spring, so PiTray clip is solid mounted on the Din rail

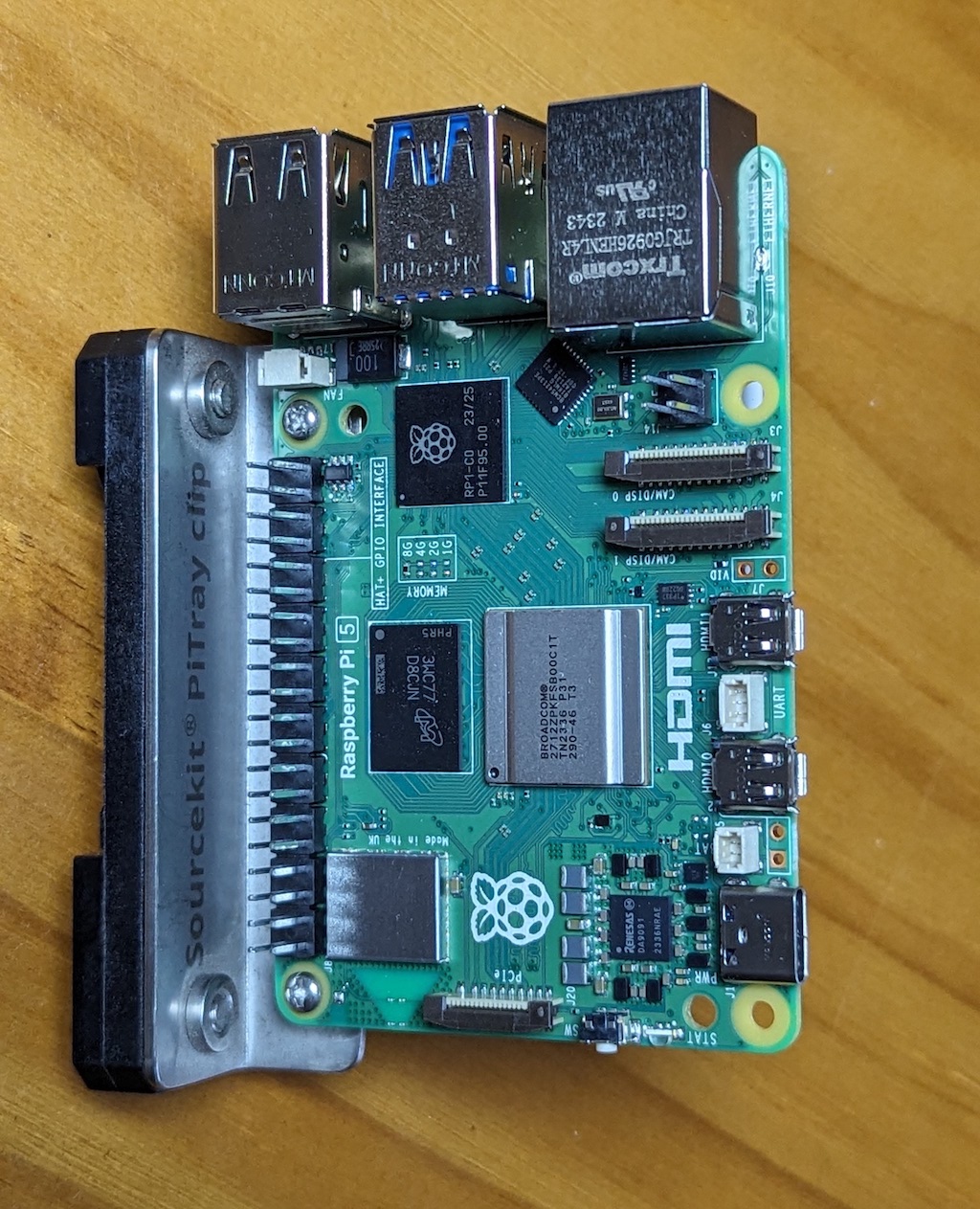

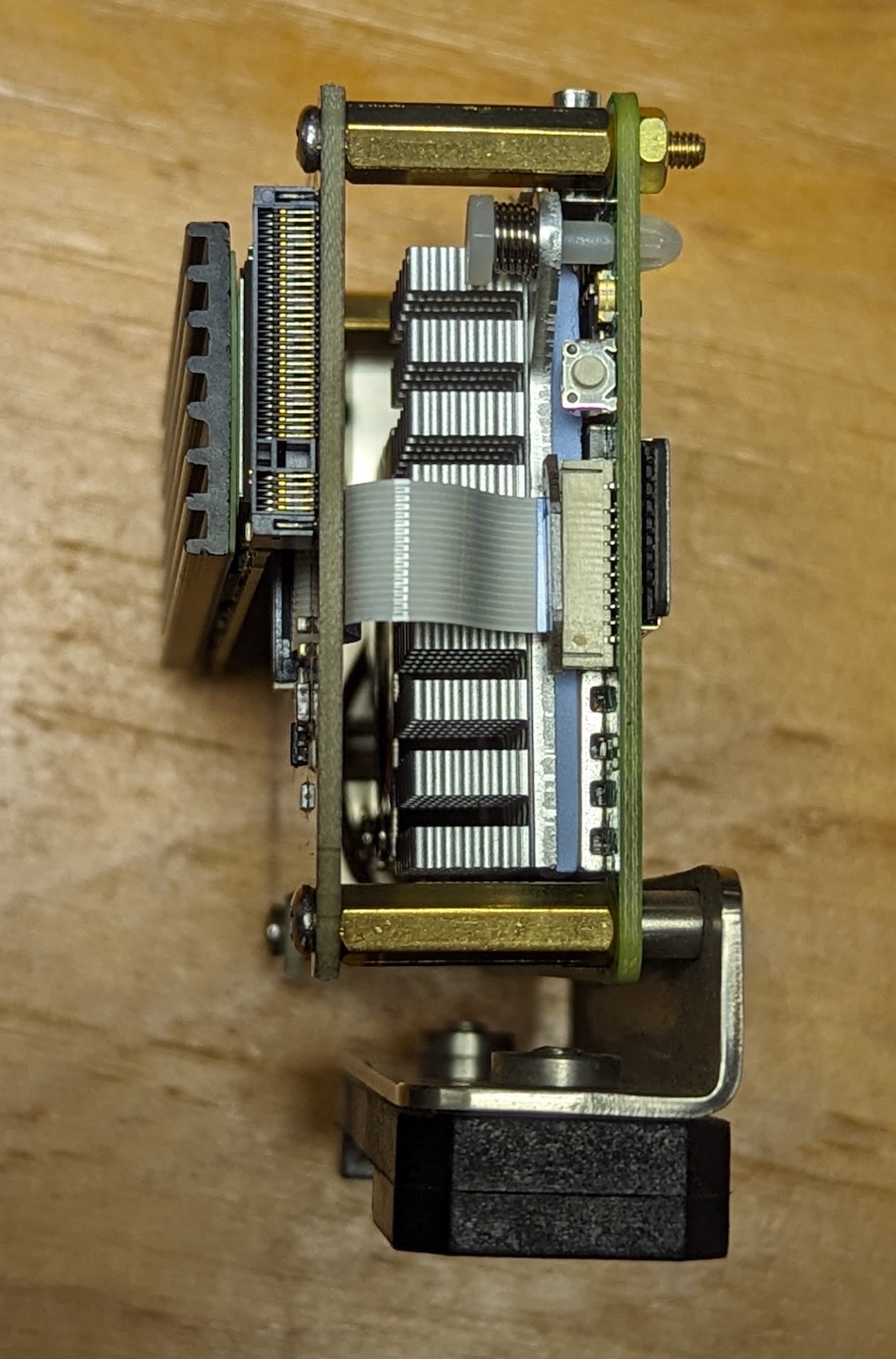

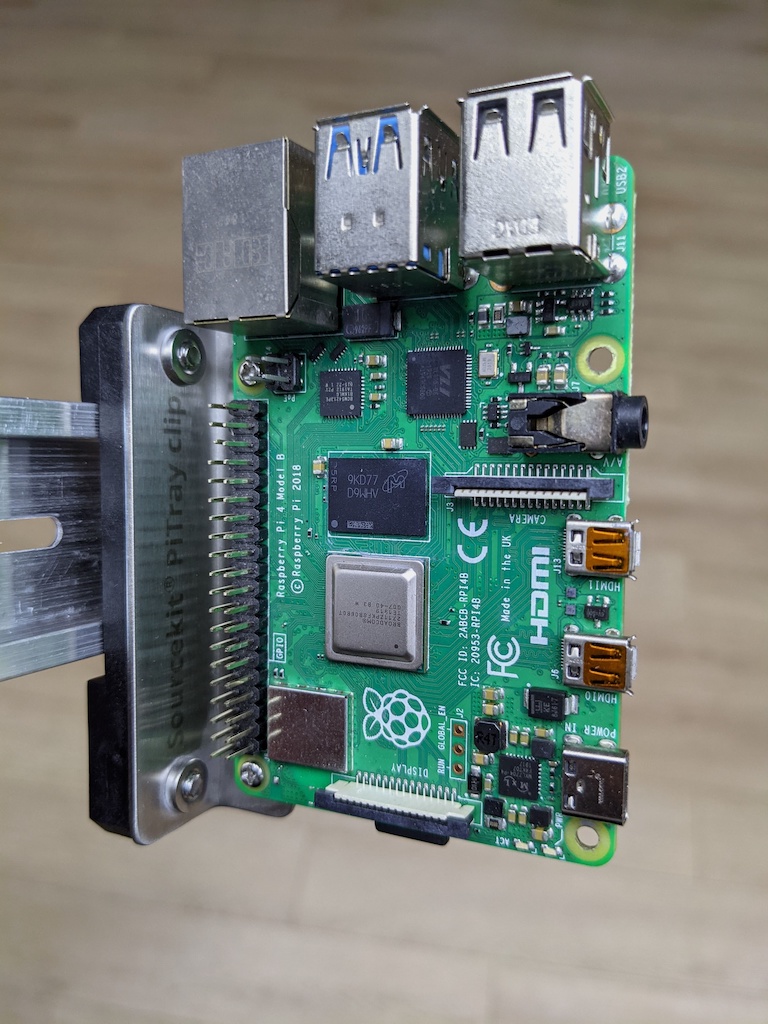

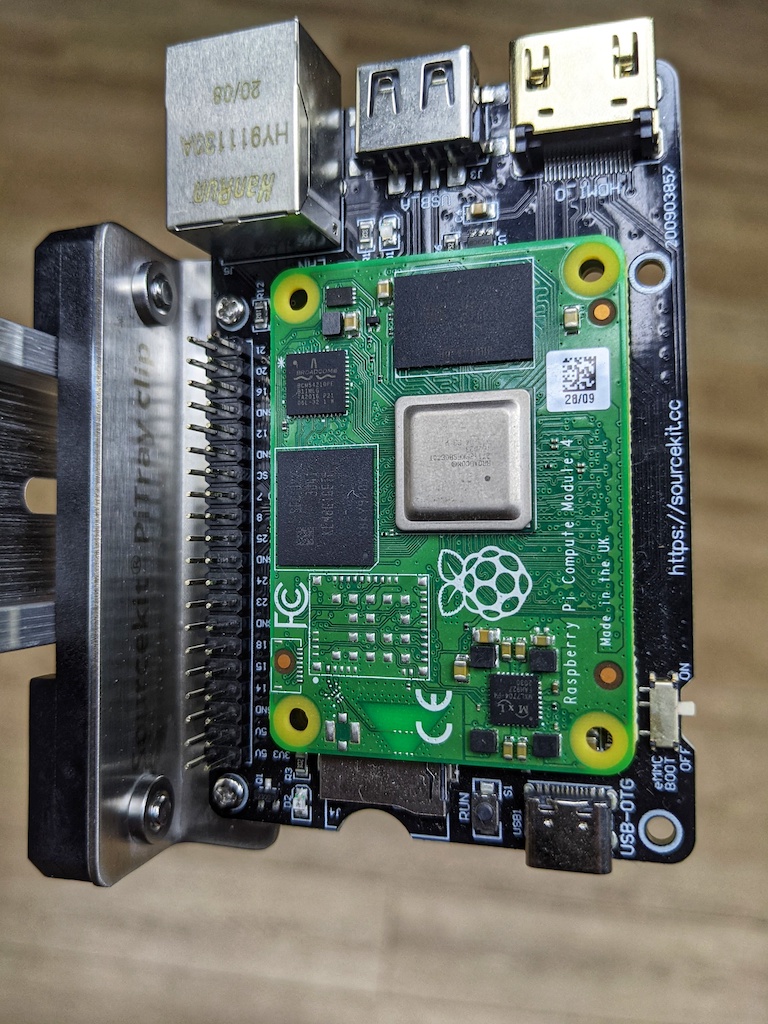

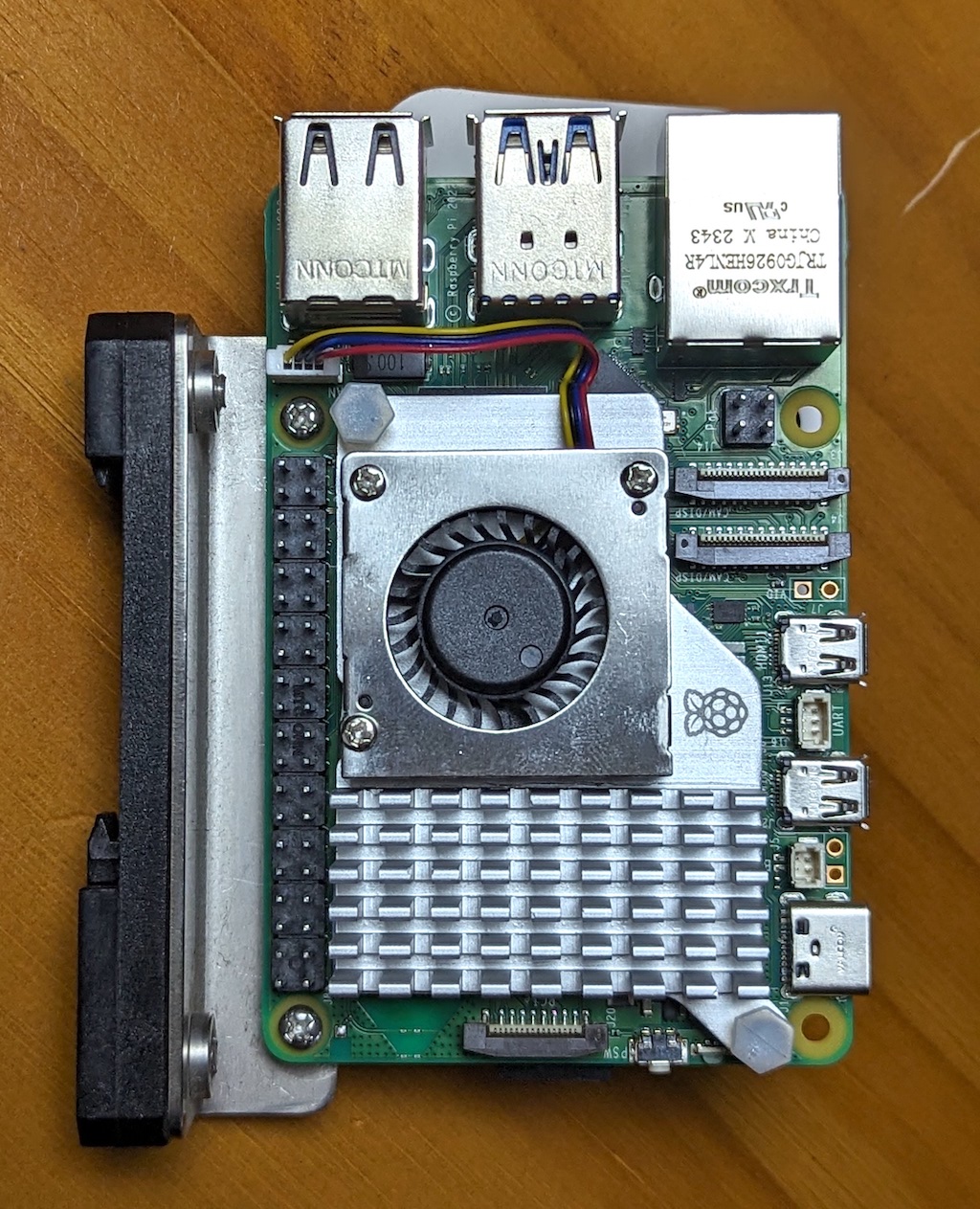

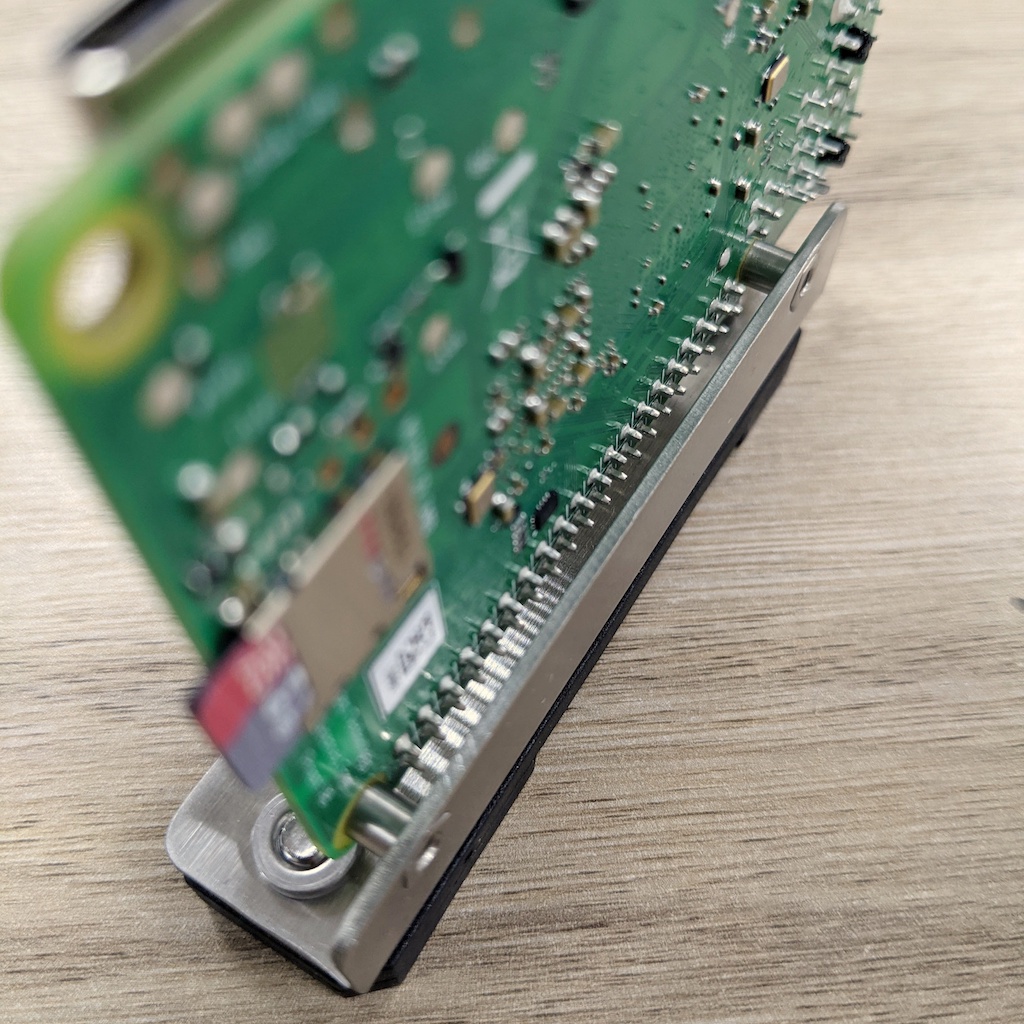

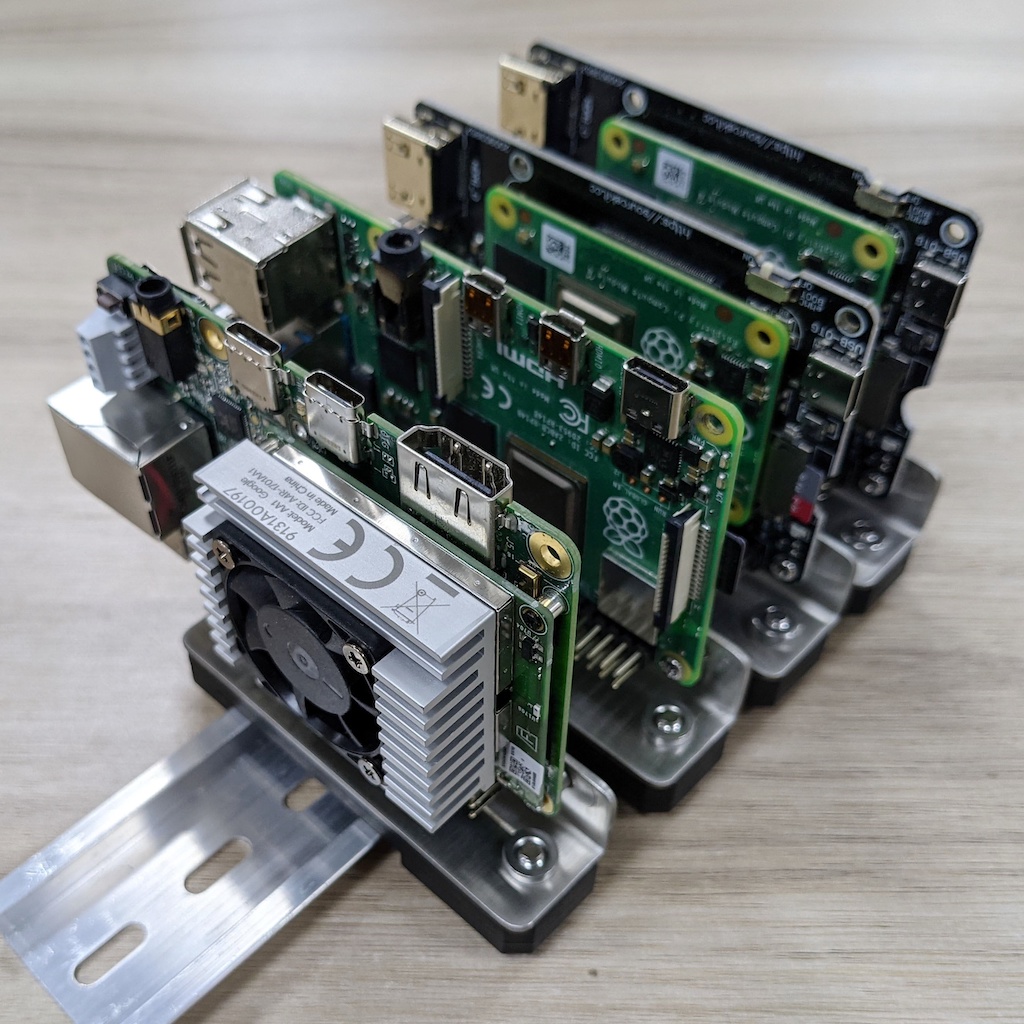

Gallery

Where to buy ?
